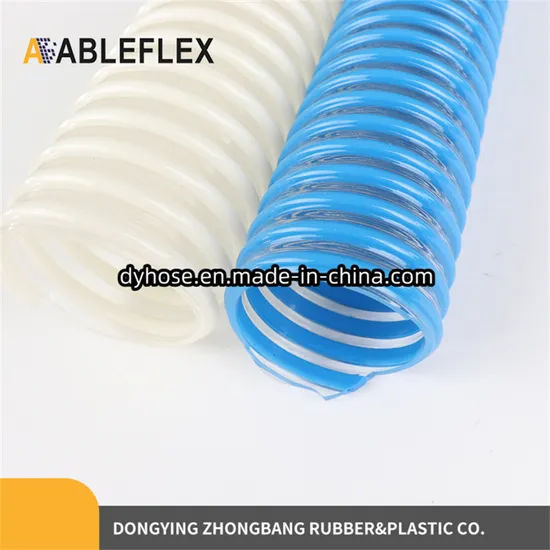

Helix Reinforced Water PVC Suction Hose

Overview
Product Parameters

Overview

Basic Info.

Model NO.	3/4"-14"
Material	PVC
Kind	Thermoplastics Pipes
Water Absorption	0.1%~0.3%
Color	Transparent, Red,Green,Blue and So on
Model No	PVC Garden Hose
Thickness	2-7.5mm
Free Sample	Available
Length	10-50meter Per PCS
Features	Flexible,Anti-UV,Non-Toxic
Temperature	-5ºC+ to 65ºC
Working Pressure	2-10bar
Burst Pressure	6-30bar
1*20gp	Load About 7ton
Delivery Time	Within 20days
Transport Package	PVC Seaworhty Film with Woven Belts
Specification	1/4"-3"
Trademark	ABLEFLEX or OEM
Origin	China
HS Code	3917390000
Production Capacity	3-8ton/Day

Product Description

Helix reinforced water pvc suction hoseDescription
Construction:
High quality pvc with rigid pvc helix
Application:
PVC suction hose is designed for regular water supply and drainage, and for transporting various powdery particles and liquids, it is widely used in civil and building works ,agriculture,mining, construction,ship and fishery.
Characteristic:
1.Economical & flexible
2.Abrasion & chemical resistant
3.Impact & crush resistant
4.Excellent bending radius
5.Constructed with rigid spiral helix reinforcement
6.Smooth inner construction for unrestricted flow of materials
Temperature:-10ºC(-50ºF) to 65ºC(+150ºF)

Technica Data Sheet More size is available, pls contact us for more information.

Production Process

Package&Shipping
Package

Fast Delivery Shipping
Different amount of time will be required for difference

FAQ
Q1. What is your terms of packing?A: Generally, we pack our goods in plastic bags for inner package.Out package you could choose the carton box or woven bags.Q2. What is your terms of payment?A: T/T ,30% In Advanced, and 70% Before delivery,Or L/C. The pictures of products detials and packages will be sent before you pay the balance.Q3. What is your terms of delivery?A: FOB, CFR, CIF.Q4. How about your delivery time?A: Generally, it will take within 10 to 30 days as receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q5. What is your sample policy?A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.But the delivery charges will be deducted from the customer's future order.Q6. Do you test all your goods before delivery?A: Yes,we have three inspection steps to make sure the products you received in high quality.Q7: Are you accept the OEM?A: Yes,we support the OEM or ODM.Q8: Our port of shipment?A: Qingdao,China or as your request.

Product Parameters

PVC SUCTION HOSE(RIGID SURFACE)
Size Inch	ID MM	OD MM	WP BAR	BP BAR	Length m/Roll	Weight g/M
3/4"	19	23	6	18	30	230
1"	25	31	6	18	30	350
1-1/4"	32	36	6	18	30	350
1-1/2"	38	44	6	18	30	550
2"	50	54	5	15	30	550
2-1/2"	63	69	4	12	30	880
3"	75	81	3	9	30	1160
4"	100	108	3	9	30	1950
5"	125	135	3	9	20	3000
6"	152	166	2	6	10	5500
8"	200	214	2	6	10	6300
PVC SUCTION HOSE(Flat surface)
Size Inch	ID MM	OD MM	WP BAR	BP BAR	Length m/Roll	Weight g/M
3/4"	19	25	8	24	30	280
1"	25	31	8	24	30	350
1-1/4"	32	40	8	24	30	500
1-1/2"	38	48	8	24	30	750
2"	50	60	7	21	30	1050
2-1/2"	63	73	6	18	30	1300
3"	75	87	5	15	30	1900
4"	100	114	5	15	30	3200
5"	125	139	4	12	20	3600
5"	125	141	4	12	20	4000
6"	152	170	4	12	10	7200
6"	152	174	5	15	10	8000
8"	200	216	3	9	10	6700
