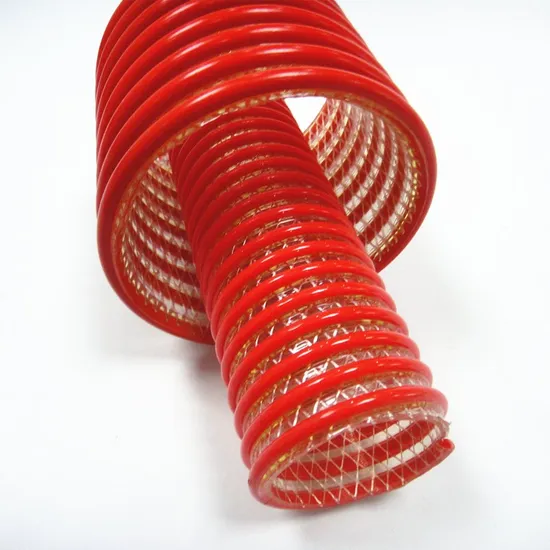

Flexible PVC Helix Suction Hose with Heat Freeze Oil Resistant

Basic Info.

Model NO.	pvc suction hose
Type	Thermoplastic Pipe
Color	Blue, Orange, Yellow, Red, etc
Hollow	Hollow
Shape	Round
Usage	Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Thickness	3mm-12mm
Length	10m/20m/30m/50m
Working Pressure	3bar-10bar
Working Temperature	-5ºC - 65ºC
Features	Abrasion and Chemical Resistant, Impact and Crush
Transporting Medium	Liquid, Powder, Granules
Quality Grade	No Toxic Grade
Connection	Camlock, Kc Nipple, Hose Mender, Bauer, Storz, Pin
Application	Industry, Agriculture and Construction
Reinforced Material	Integral Helix Rigid PVC
Transport Package	Woven Plastic Cloth Wrapped
Specification	3/4"-16"
Trademark	ET
Origin	Shandong, China (Mainland)
HS Code	39173900
Production Capacity	2000tons/Year

Product Description

PVC Suction Hose is also called helix suction hose, spiral reinforced suction hose, water pump suction hose, oil suction and delivery hose, debris suction hose, trash pump hose and vacuum hose etc. Which is heavy duty PVC suction hose designed for high pressure suction or transfer in general industry applications.
Application:
The Spiral Suction Hose is widely used for heavy duty suction and delivery of water, sewage, oil, greases, debris, gravels in construction buildings, mining industries, water pump industries, and other general industry applications. This kind of suction hose can be used for collection of waste on environmental waste trucks, pumping the contents of grease pits, sewage collection, lubricants and most light chemicals.
Features:
General purpose hose, weather and abrasion resistant, smooth tube prevents materials blockage, smooth outer provides easy dragging, clear wall provides easy inspection of materials flow, different lengths available, ideal replace for bulkier and heavier ply-wrapped rubber hose.
Specification:

Packaging:

FAQ:

1. What are you offering? 1) PVC hoses (layflat hose, suction hose, braided hose, garden hose, air hose etc.) 2) Hose couplings and clamps 3) Garden equipment

2. Can your company supply some certificate for your product or can you accept some test for your product or your company? Yes, we had passed a lot of test for our product and factory and factory. Any testing can make by your need.

3. What's your advantages? Eastop is a trusted professional hose manufacturer, we have more than 20 years of production experience. We own 80 production lines to make sure good quality hose and fast delivery time. We promise to provide professional after-sales service, solve all kinds of technical problems at any time until customer satisfy. We have join ****** trade assurance (a free payment protection service), payment more safe

flexible pvc helix suction hose with heat freeze oil resistant

Inner Diameter		Outer Diameter		Weight	W.P.(at 23ºC)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
3/4	19	0.984	25	0.28	8	120	50	150
1	25	1.26	32	0.38	8	120	50	150
1-1/4	32	1.535	39	0.45	7	100	50	150
1-1/2	38	1.85	47	0.7	7	100	50	150
2	51	2.402	61	1.1	6	90	50	150
2-1/2	64	2.913	74	1.3	6	90	30	90
3	76	3.386	86	1.7	5	75	30	90
4	102	4.567	116	3.2	5	75	30	90
5	127	5.591	142	3.8	4	60	30	90
6	153	6.693	170	6.2	4	60	20	60
8	203	8.622	219	7	3	45	10	30
